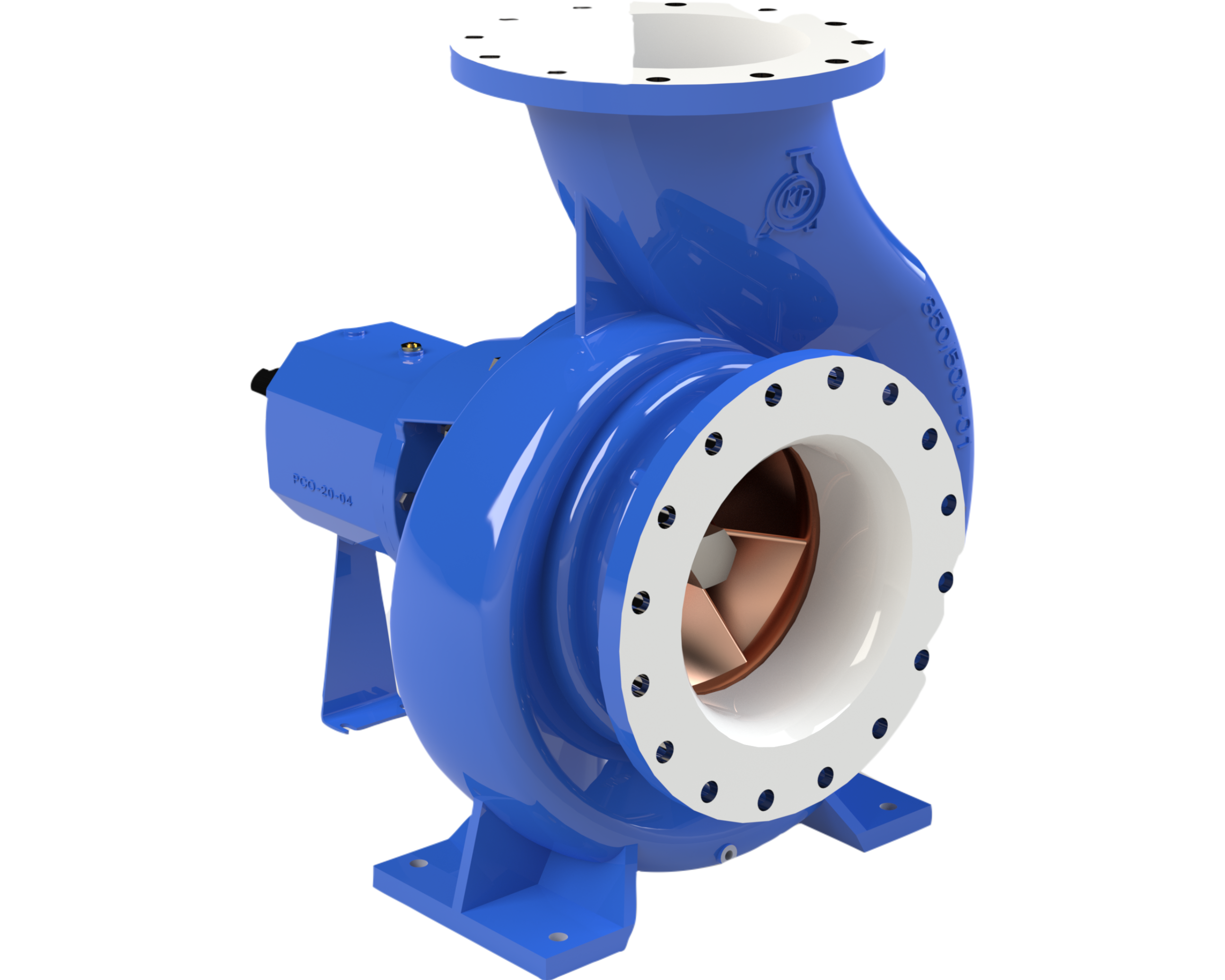

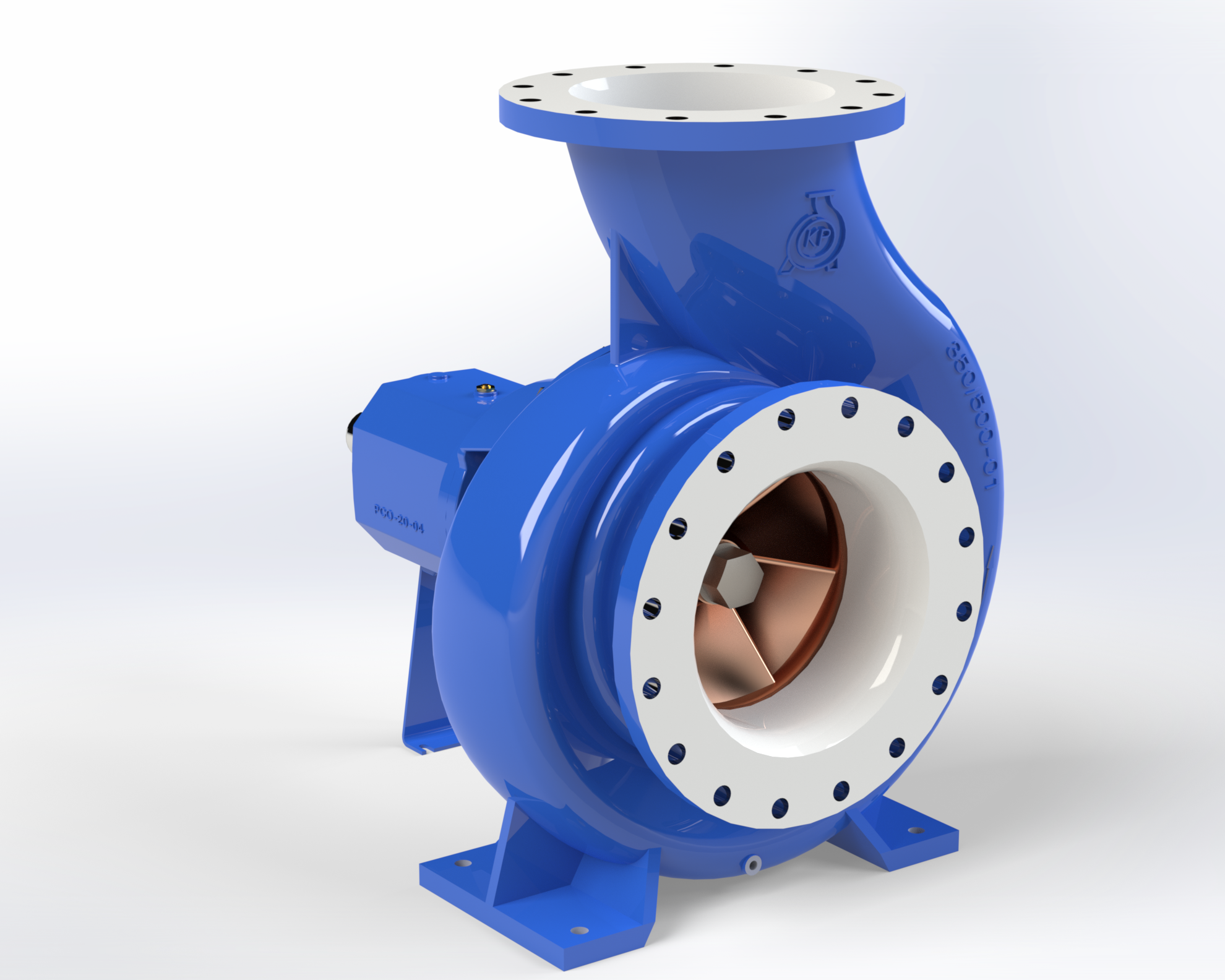

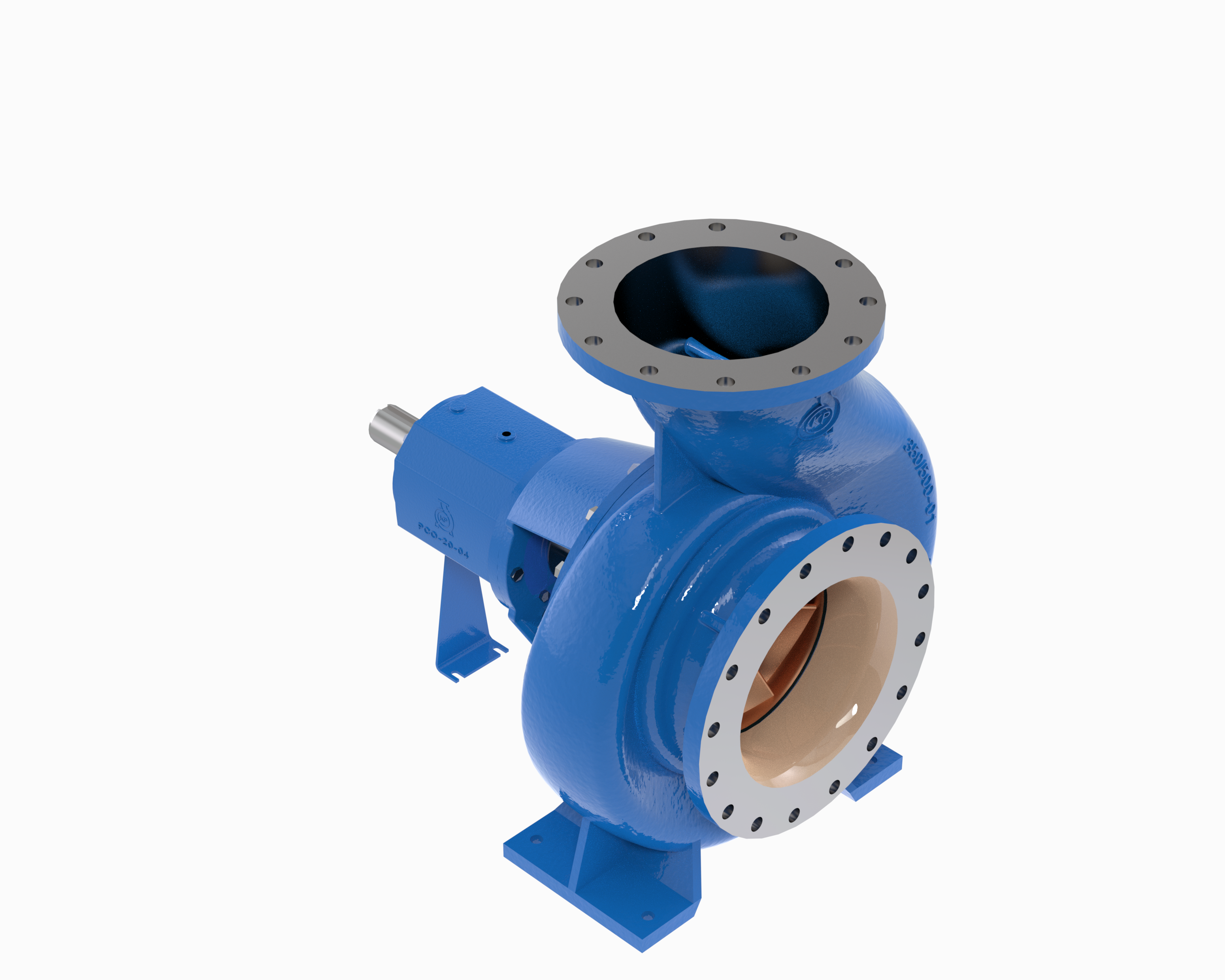

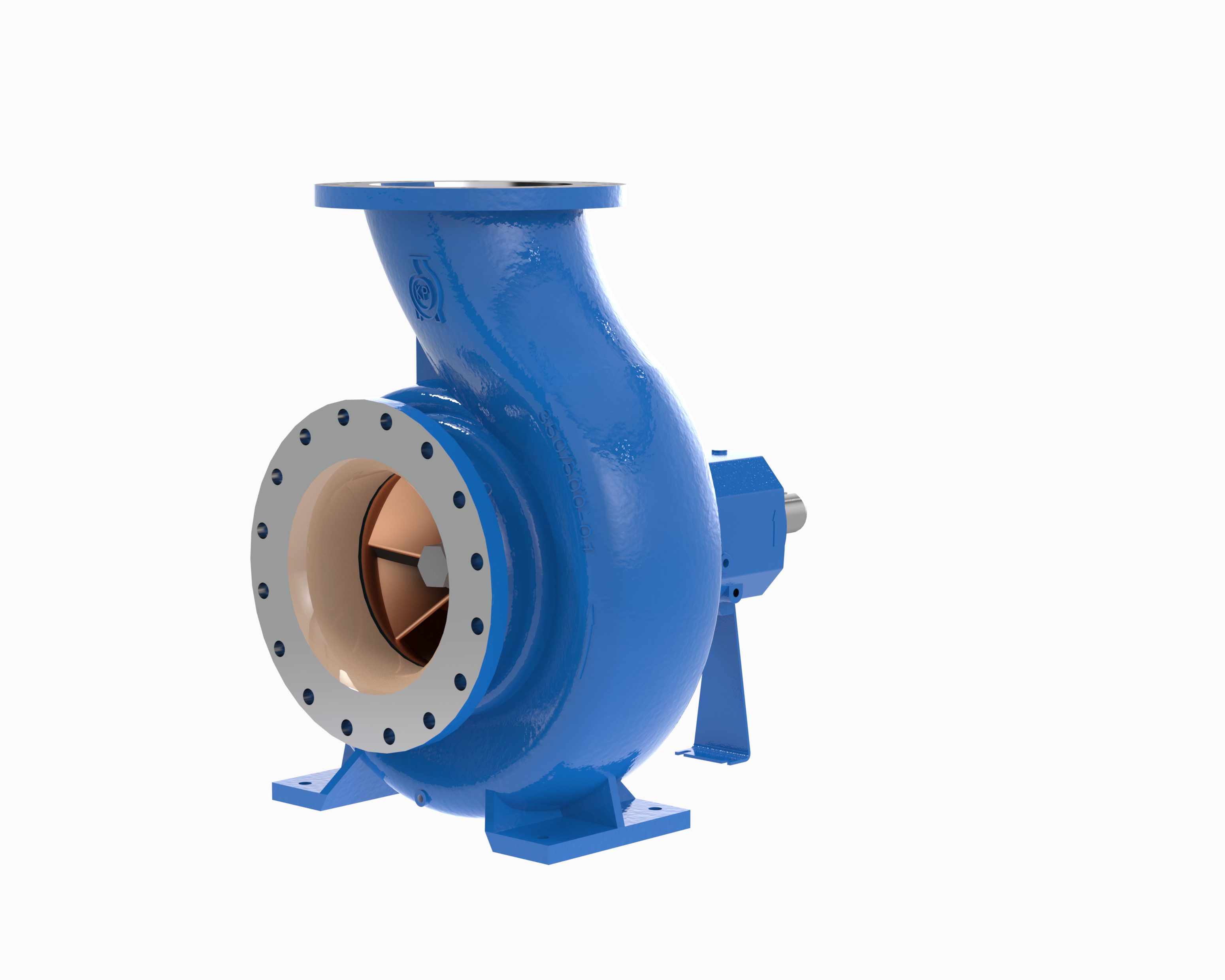

Pulp And Paper Stock Pump
PSX series
KEERTHI pumps offer – PSX is specially designed for Pulp and Paper stock applications also offer tailor made solutions for all other Paper making process applications.PSX -Series Pumps id designed for handling liquids with solids in suspension, sludge or pulpy material in Paper Industries, sewage or waste with soft solids in suspension, viscous liquids or liquids carrying fibrous material or powdered material slurries.
| Pump Delivery Size D | DN 65 to DN 400 |
| Head H | Up to 80 mtrs (260 feet) |
| Capacity Q | Up to 2500 m³/hr |
| Max.Working Pressure | 22 bar |
| Max.Operating (Temp) | 140 °C |
| Speed N | 1450 rpm |
Paper Mills application like chest pump, refineries pump, Fan pump, Centri cleaner pump,
Back water pump, separator pump, couch pit pump, turbo feed pump, stock pump
Pulp making Process, Pulp Preparation Process and paper making Process
Coating production, caustic Gasification, DE inking, Flocculation
Paper Bleaching, Additives, Dyes Process
Pulp slurry transfer- Cellulose fibre slurries, Evaporators, Concentrators applications
Flash tanks, Flotation cells, Black liquor& waste Stock
Acid , alkaline, corrosive slurries etc
Heavily contaminated liquids, raw sewage, sludge
Absorption plant & Chemical Process Industries
Agro and Fertilizer Plants
Drugs and Pharmaceutical
Liquor and Bewerages Plant
Cements and Sugar Plants
Textile, Jet Dyeing, Dyes & Intermediates
Organic and Inorganic Liquids Refineries
Effluent Treatment Plants
Chlorinated water, Volatile Liquids
Oil Extraction and Waste
Slurry Handling
| Specifications | Range |
|---|---|
| Pump Delivery Size D | DN 65 to DN 400 |
| Head H | Up to 80 mtrs (260 feet) |
| Capacity Q | Up to 2500 m³/hr |
| Speed N | 720/960/1450 rpm at 50 Hz |
| Speed N | 1200/1450 rpm at 60 Hz |
| Temperature | Up to 140 °C |

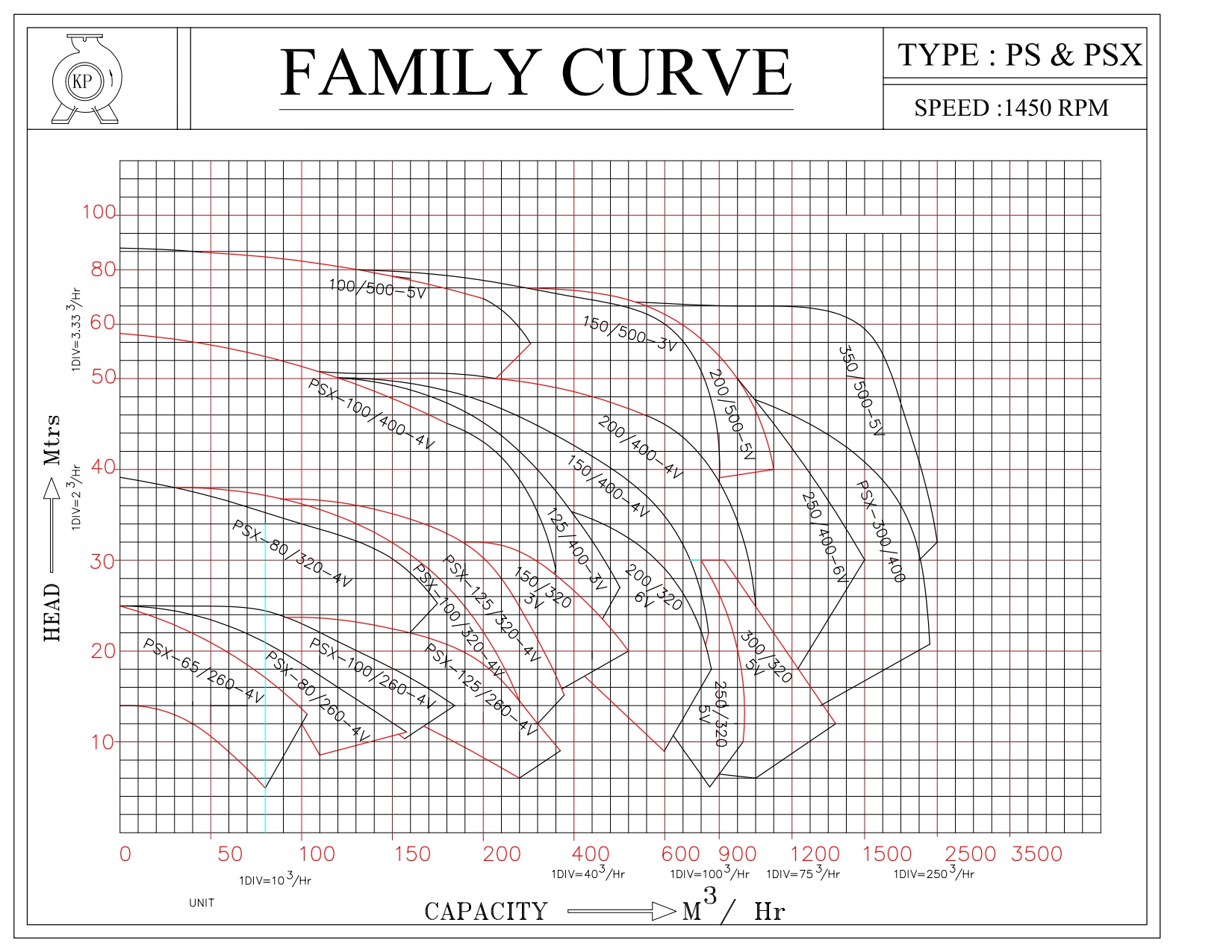

PSX 65/260
PSX 80/260
PSX 80/320
PSX 100/260
PSX 100/320
PS 100/400
PS 100/500
PSX 125/260
PSX 125/320
PS 125/400
PS 125/500
PS 150/260
PS 150/320
PS 150/400
PS 150/500
PS 200/320
PS 200/400
PS 200/500
PS 250/320
PS 250/400
PS 300/320
PS 300/400
PS 350/500
PS 350/600
PS 450/550
Handling pulp & paper stocks up to 6% consistency
Conform to DN 24256 dimensions
High efficiency hydraulic design
Heavy duty shaft, sleeve and bearings
Low NPSH, lesser Noise and maintenance free
Open impellers with renewable front wear plate and closed impeller with wear – ring
Simple external adjustment for impeller wear
Heavy duty bearing for maximum life.
Vibration free running due to hydraulically balanced construction.
Heavy duty shaft with maximum deflection less than 0.05mm.
Jacketed convertible stuffing box utilizing gland packing or mechanical seal.
5 Power frame sizes
High reliability and lower operating costs
Easy maintenance through the Back-Pull-Out principle
Single unbalanced / balanced seals to EN 12756 (DIN 24960)
Rigid Construction for better life
Robust shaft design
Spares interchangeability
Hydraulic Efficient leads more energy saving
Oversized rugged shaft to minimize corrosion.
Stuffing box easily converted from gland packing to mechanical seal.
Tapper Roller Bearings with Oil & Grease Lubrication Options. Rated L10 – 100,000 Hours
Standard ANSI flange for discharge and suction
Low Shear Recessed Impeller That Can Handle: Pulp & Paper, Carbon Transfer, Large Solids, Etc.
Good homogenization of the stock application
Excellent efficiency of more than 70% which is significantly above industry average
Easy maintenance through the Back-Pull-Out principle
| Part Name | Material |
|---|---|
| Casing | Cast iron FG260 / Cast Iron FG 200 / CF8 / CF8M / 2%NICI / Duplex Steel |
| Impeller | CA15 / SS 304 / SS 316/Duplex Steel |
| Stuffing Box | Cast iron FG260 / Cast Iron FG 200 / CF8 / CF8M / 2%NICI / Duplex Steel |
| Wear plate | CA15 / SS 304 / SS 316/Duplex Steel |
| Pump Shaft | EN8 /SS 410 / SS 304 / SS 316/Duplex Steel |
| Bearing bed | SS 410 /SS 304 / SS 316/Duplex Steel |
| Bearing bed | Cast iron |
| Gland | MS / SS |
Gland Rope
Single Mechanical seal
Double Mechanical seal
Cartridge Seal
Dynamic Seal
Base plate
Coupling (Love jaw/tyre/spacer/pin push)
Coupling guard
Foundation Bolt
